MACRO Nikkor Family, Special MACRO Lenses for MULTIPHOT

MACRO Nikkor Lenses

The MACRO Nikkor is a macro lens specially designed for the Nikon MULTIPHOT system released in 1968. It's Not MICRO Nikkor. They are MACRO Nikkor lenses. Yes, It's Real MACRO Nikkor Lenses.

A left one is red line Nikkor, MACRO Nikkor 12cm F6.3 lens. A center one is yellow line Nikkor, MACRO Nikkor 65mm F4.5 lens. A right small one is blue line Nikkor, MACRO Nikkor 35mm F4.5 lens.

I placed a MICRO Nikkor 55mm F3.5 lens on the white table to compare size with MACRO Nikkor lenses.

MACRO Nikkor Basic Sets

Kabukiza Theatre and MACRO Nikkor

Beautiful Red Line MACRO Nikkor 12cm F6.3 Lenses

Red Strawberries and MACRO Nikkor 12cm F6.3 Lenses

Beautiful Yellow Line MACRO Nikkor 65mm F4.5 Lenses

Lemons and Bananas and MACRO Nikkor 65mm F4.5 Lenses

Japanese Traditional Old Sweets and MACRO Nikkor Lenses

The highend Macro Nikkor lenses are simple and beautiful like the Japanese traditional old sweets. Little sweets: The Senbon TamajyuKen, KYOTO.

MACRO Nikkor 35mm F4.5 and MACRO Nikkor 19mm F2.8

MACRO Nikkor 35mm F4.5

MACRO Nikkor 19mm F2.8

Yuzu Citron and MACRO Nikkor Lenses

MACRO Nikkor Specifications

The specifications and prices of MACRO Nikkor lenses are shown below.

MACRO NIKKOR SPECIFICATIONS

Lens Thread Magnification Range Standard Magnification Price
(1993, Japan)

19mm F2.8 RMS 15 X - 40 X 20 X 79,000 YEN

35mm F4.5 RMS 8 X - 20 X 12 X 64,000 YEN

65mm F4.5 Leica L39 3.5 X - 10 X 5 X 80,000 YEN

12cm F6.3 Leica L39 1/3 X - 4 X 1 X 85,000 YEN

The price of the MULTIPHOT system dated June 1993 is as follows.

35mm Set (Set 11)
Nikon 35mm SLR camera
1,395,000 Japanese YEN

4 X 5 Set (Set 12)
4 X 5 inch Large format camera
1,636,000 Japanese YEN

4 X 5 Set (Set 13)
4 X 5 inch Large format camera and Nikon 35mm SLR camera
1,809,000 Japanese YEN

Price Transition of Nikon MULTIPHOT System

The price is Japanese YEN.

Date	35mm	4 x 5	35mm and 4 x 5
February 1970	392,500	533,750	613,850
July 1970	475,200	595,100	641,900
January 1973	52,8600	66,5150	731,950
December 1973	658,900	831,700	912,900
October 1979	782,000	1,048,000	1,132,000
April 1980	884,000	1,148,000	1,247,000
October 1986	1,219,500	1,576,000	1,708,000
June 1993	1,395,000	1,636,000	1,809,000

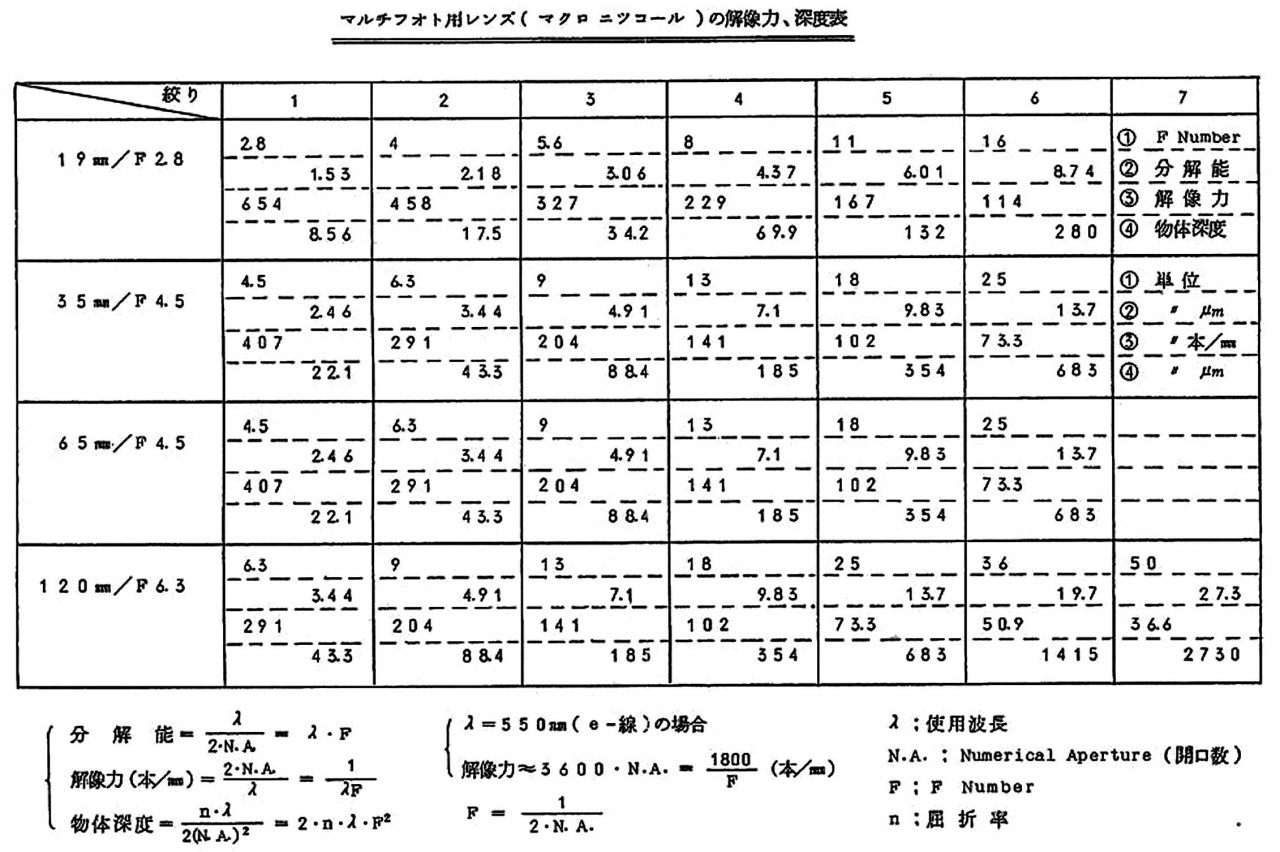

Resolving Power of MACRO Nikkor

I was able to obtain information from Nikon regarding the resolving power of the MACRO Nikkor lenses, which I will present here.

The numbers 1 to 7 engraved on the lens barrel indicate the aperture F number. For a 19mm F2.8 lens, 1 on the aperture scale means F2.8, and the resolving power is 654 lines/mm.

Resolving Power of MACRO Nikkor (lines/mm)

SCALE 1 2 3 4 5 6 7

19mm F2.8 F2.8
1.53
654
8.56 F4
2.18
458
17.5 F5.6
3.06
327
34.2 F8
4.37
229
69.9 F11
6.01
167
132 F16
8.74
114
280 F No.
Res.
Pow.
Dep.

35mm F4.5 F4.5
2.46
407
22.1 F6.3
3.44
291
43.3 F9
4.91
204
88.4 F13
7.1
141
185 F18
9.83
102
354 F25
13.7
73.3
683

65mm F4.5 F4.5
2.46
407
22.1 F6.3
3.44
291
43.3 F9
4.91
204
88.4 F13
7.1
141
185 F18
9.83
102
354 F25
13.7
73.3
683

12cm F6.3 F6.3
3.44
291
43.3 F9
4.91
204
88.4 F13
7.1
141
185 F18
9.83
102
354 F25
13.7
73.3
683 F36
19.7
50.9
1415 F50
27.3
36.6
2730

Resolution (μm) =

\frac{λ}{2 ⋅ N.A.}

= λ ⋅ F

Resolving Power (lines/mm) = $\frac{2 ⋅ N.A.}{λ}$ = $\frac{1}{λF}$

Object Depth (μm) = $\frac{n ⋅ λ}{2(N.A.)²}$ = 2 ⋅ n ⋅ λ ⋅ F²

λ: Wavelength
N.A.: Numerical Aperture
F: F Number
n: Refractive Index

In case of e-line
λ = 550nm (e-line)
Resolving Power ≈ 3600 ⋅ N.A. = $\frac{1800}{F}$ (lines/mm)
F = $\frac{1}{2 ⋅ N.A.}$

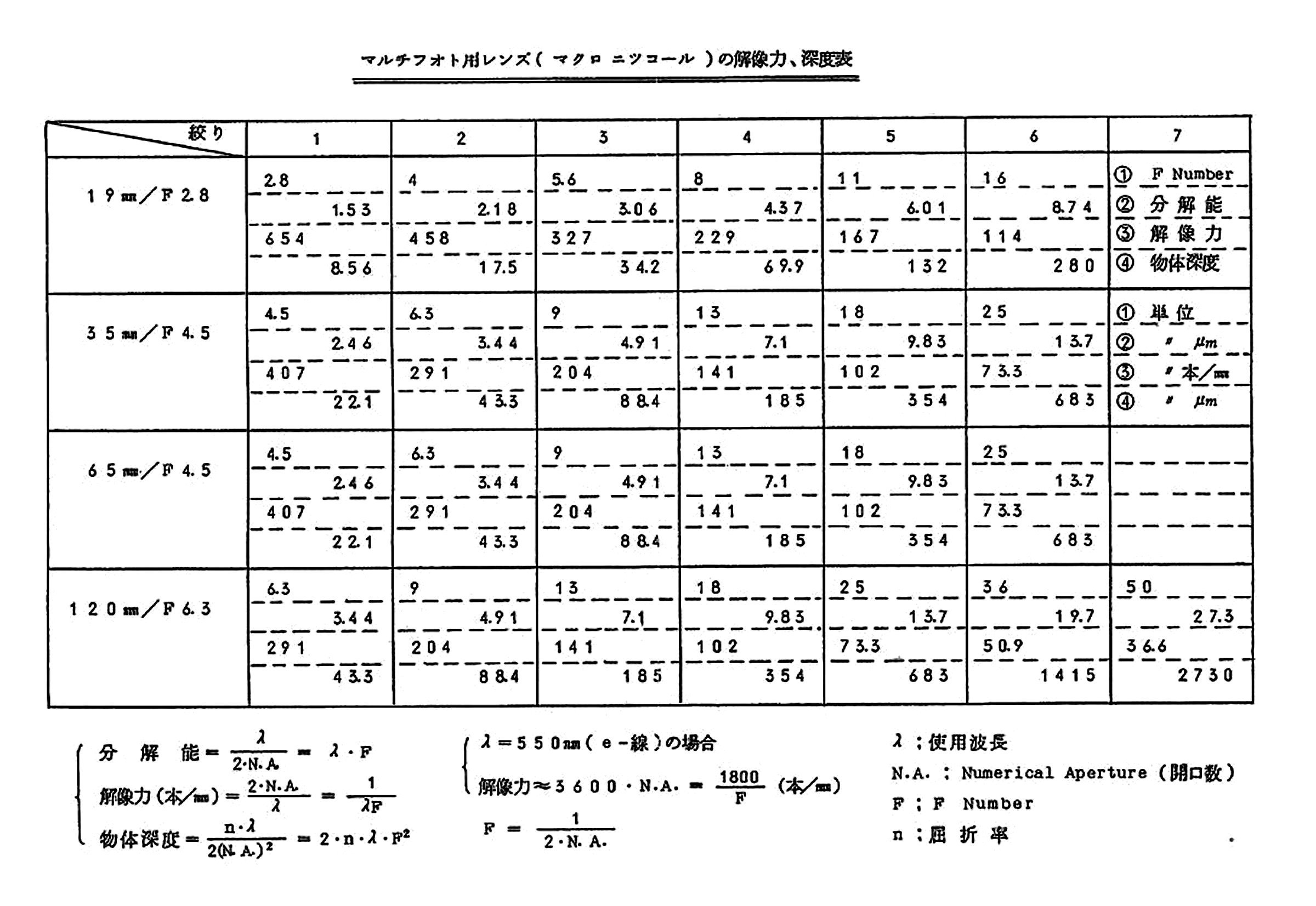

Resolving Power of MACRO Nikkor (Courtesy of Nippon Kogaku)

Brochure

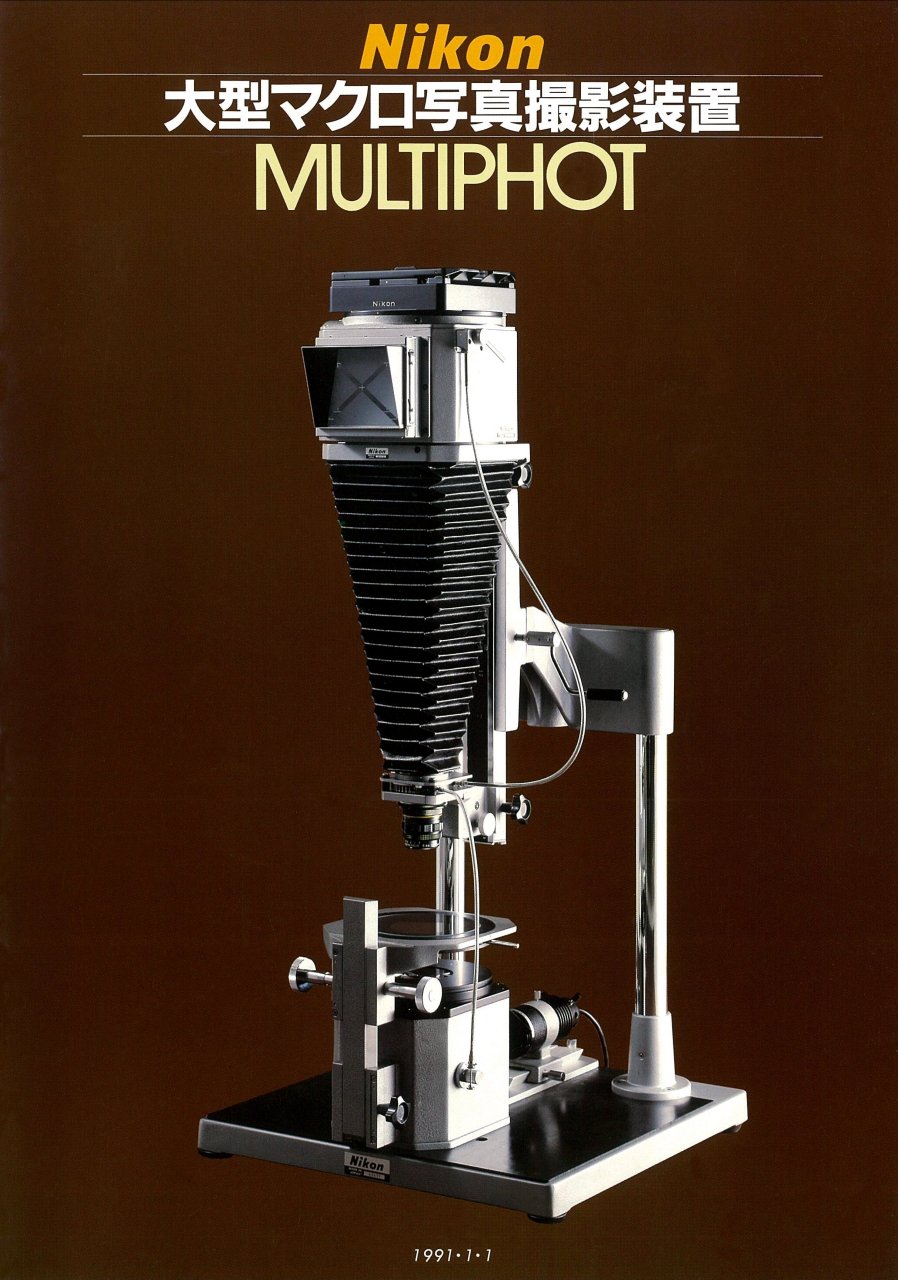

I would like to show you the Nikon MULTIPHOT brochure dated January 1, 1991.

Nikon MULTIPHOT
Brochure dated January 1, 1991

PDF data >>> Nikon MULTIPHOT. pdf

MACRO Nikkor Family

Little Pretty RMS Macro Nikkor Lenses

Gingko Nuts and RMS Macro Nikkor

Japanese Traditional Gold Folding Screen and MACRO Nikkor Lenses

Japanese traditional gold folding screen is necessary for the big moment with high formality of Japan.
